TV486048PCT22

POLYMER CONCRETE BOX & COVER

A Tier 22 poly-crete hand hole is a medium-duty utility vault made from polymer concrete, capable of supporting up to 32,000 lbs. It’s commonly used in telecom, electrical, or fiber optic infrastructure where strength, durability, and corrosion resistance are needed. Ideal for sidewalk and driveway installations for telecommunications, CATV, DOT, water, utilities, and other applications.

Specs

  • Tier 22 (32k rated)
  • Ansi/SCTE 77
  • Buy American
  • Buy America
  • RUS Approved

Add-Ons

  • Hooks/Racks
  • Mouseholes
  • Knockouts
  • Custom Nameplates
  • Gaskets
  • EMS Markers
TIER 22

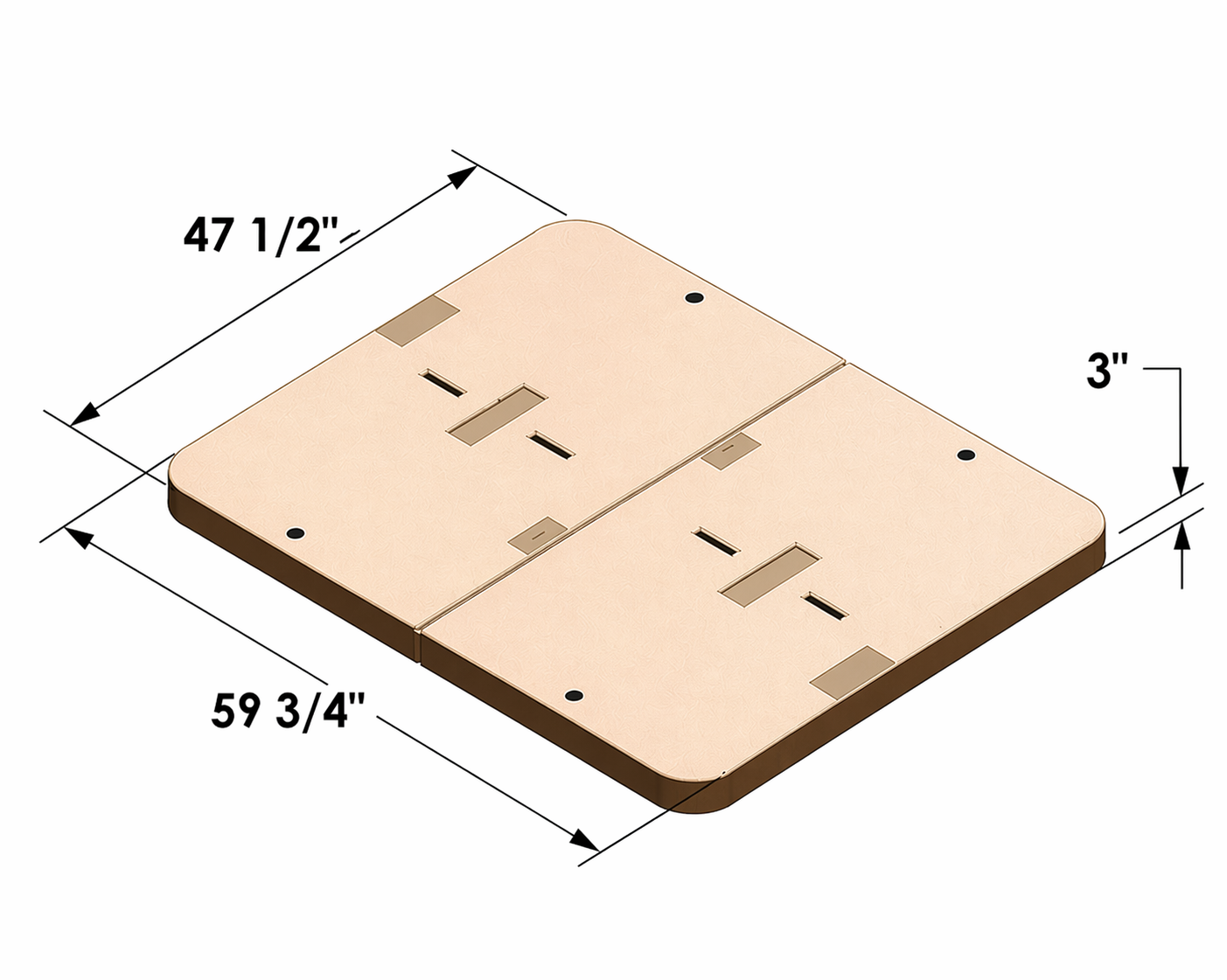

Cover

  • Dimensions: 59 3/4" x 47 1/2" x 3"
  • Material: Polymer Concrete
  • Style: Flush Split
  • Fasteners: 3/8-16 x 3" SS Hex Bolt
  • Lift points: 1/4" SS Rod
  • Custom logo available

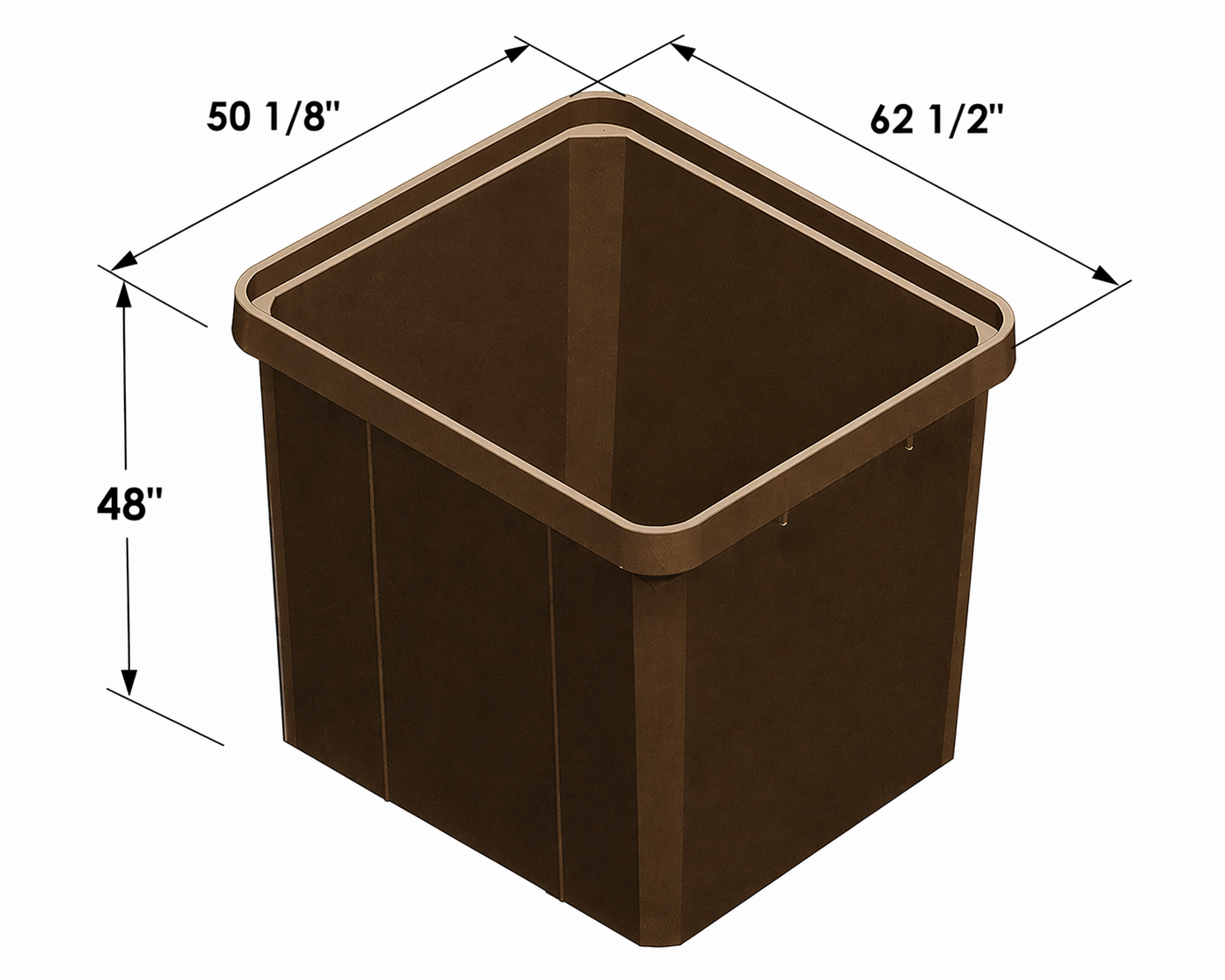

Body

  • Dimensions: 62 1/2" x 50 1/8" x 48"
  • Material: Polymer Concrete
  • Additional body depths available

Dimensions

  • 48” x 60” x 48”
