Plastic - Tier Rated

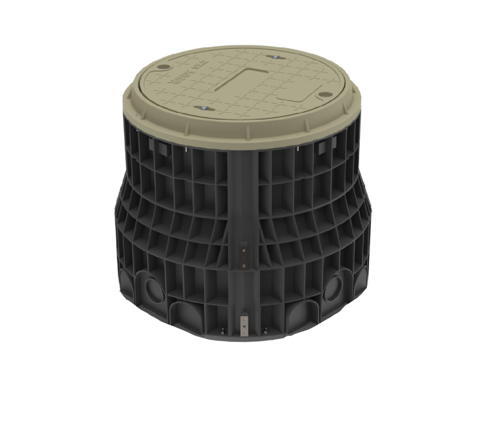

AXS-500R500
AXS- 500R500 Vault
- Ideal for medium to high fiber counts, depending on cable type.
- These units can be used for retro fitting (built around / on top of existing network infrastructure) by making use of the port technology and modular panel configuration.
- A smaller lid diameter and tapered body allows for a smaller surface footprint of 20.25” [514mm] with maximized volume in the chamber / vault for cable and closure housing.
- Hinge-less slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER 15

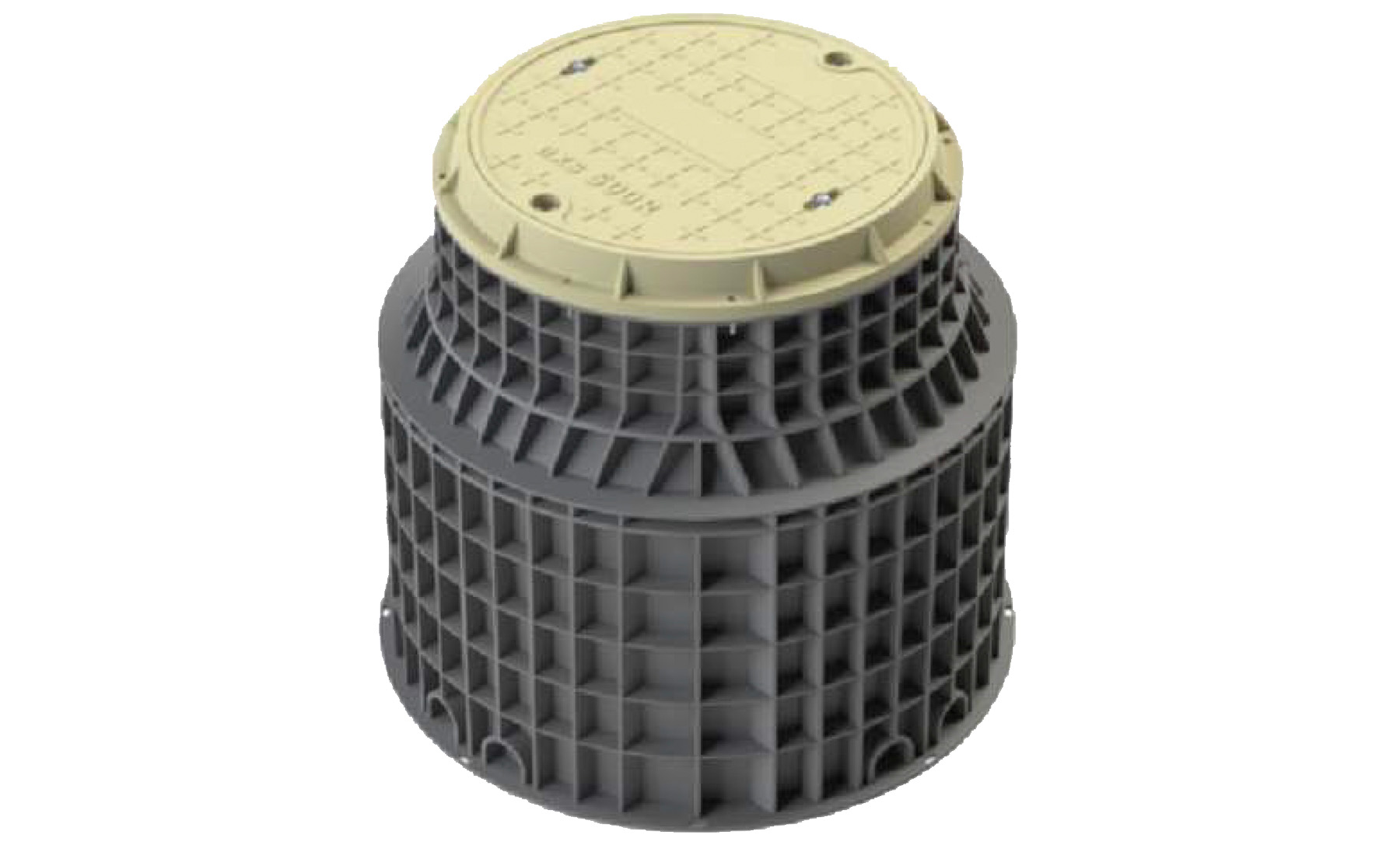

AXS-500R670-S
AXS-500R670-S Vaults
- Manufactured in Single Shot Construction.
- Ideal for medium to high fiber count, depending on cable type.
- These units can be used for new construction or retro fitting (built around/on top of) existing network infrastructure by making use of the optional knock-out conduit ports at base of unit.
- A smaller lid diameter and tapered body allows for minimized footprint at ground level with maximized volume in the chamber/vault for cable and closure housing.
- The unit stacks, offering economic transport and storage practices.
- Manufactured from lightweight, high strength composite materials
- A hingeless slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER 15 / 22

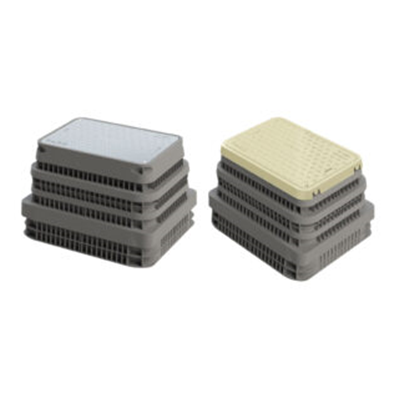

RFW 24x36x30 Tier 15 & Tier 22 Vaults
RFW Series
- DMC will comply to SANS 713 grade F.
- Can be formulated to also comply to UL94 V-0.
- DMC is fire resistant, refer Telcordia GR-13 CORE Section 3.21.
TIER 15 / 22

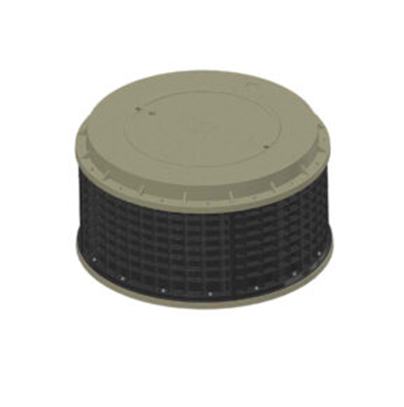

AXS-900R450 and AXS-900R900
AXS-900R450 & AXS-900R900 Vaults
- Ideal for medium to high fiber count, depending on cable type.
- These units can be used for retro fitting (built around / on top of existing network infrastructure) by making use of the port technology and modular panel configuration.
- Hinge-less slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER 22

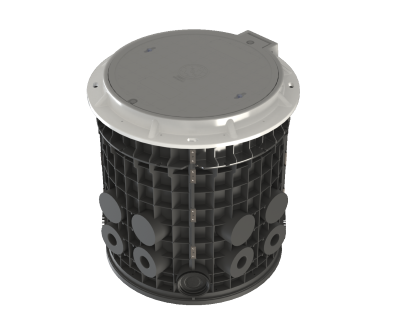

AXS-600R600 & AXS-600R670
AXS-600R600 & AXS-600R670 Vaults
- Ideal for medium to high fiber count, depending on cable type.
- These units can be used for retro fitting (built around / on top of existing network infrastructure) by making use of the port technology and modular panel configuration.
- Hinge-less slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER 22

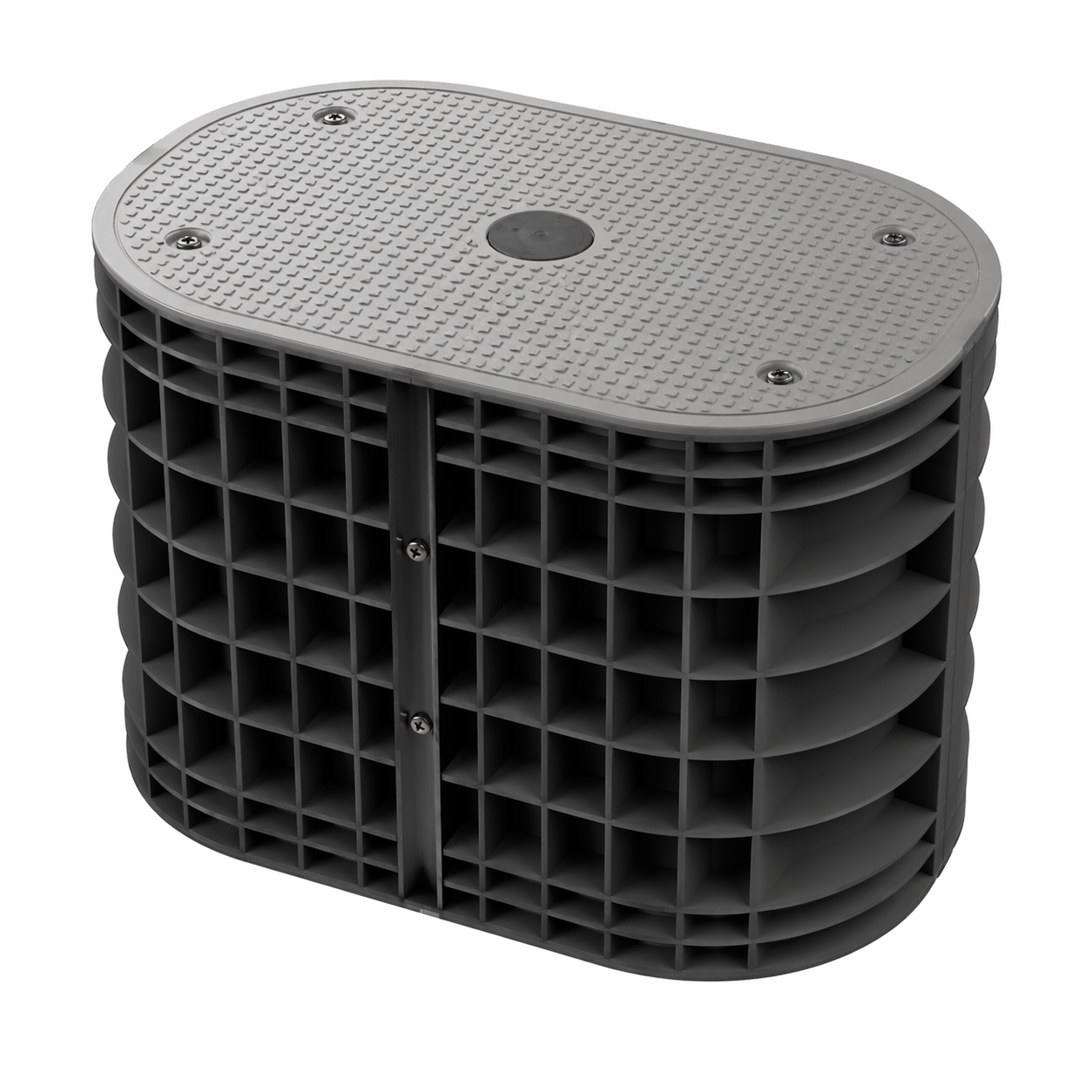

TIER 22 - T22
17 x 30 x 24 HAND HOLE
- HDPE Components & Aluminum Structure (Lid & Clamshell)
- Lightweight (~80 lbs Fully Assembled)
- Reversible Clamshell – Prevents Errors when Setting
- Unique Snaplock Clamshell
- Lids available in Gray or Green color
- Unique Clip in Anchors for Lid attachment
- Outer Grid Prevents Heaving after Installation
- Raised lip on clamshell and recess in lid prevent water ingress to unit
TIER 22

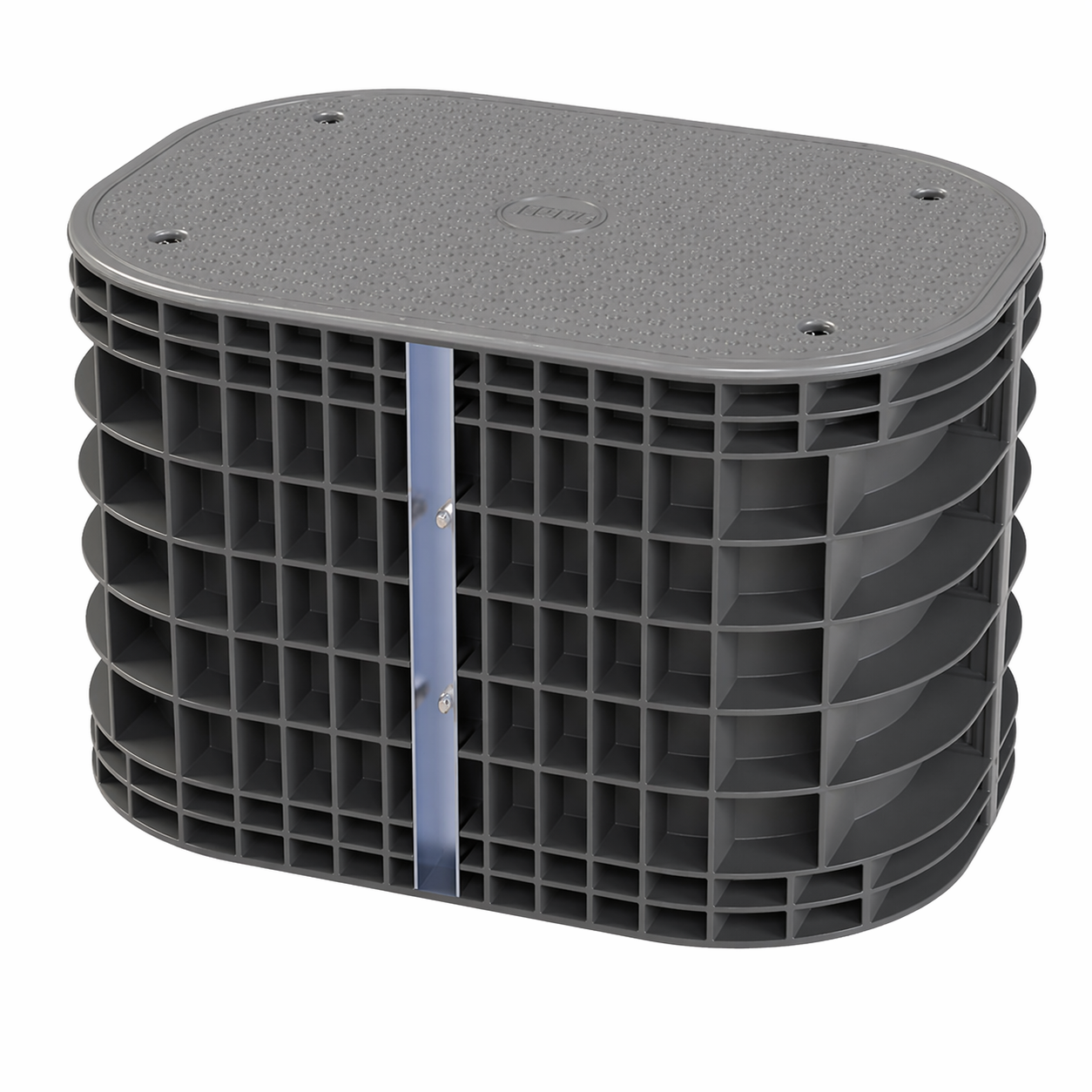

TIER 22 - H22
24 X 36 X 24 HAND HOLE
- HDPE Components with Aluminum Structure (Lid & Clamshell)
- Lightweight (115 lbs Fully Assembled)
- Reversible Clamshell – Prevents Errors when Setting
- Unique Snaplock Clamshell
- Lids available in Gray or Green color
- Advanced Design Clip in Anchors for Lid attachment
- Outer Grid Prevents Heaving after Installation
- Raised lip on clamshell and recess in lid prevent water ingress to unit
TIER 22 (H22 Lid)
