Plastic - Pedestrain Rated
AXS-320T-LD

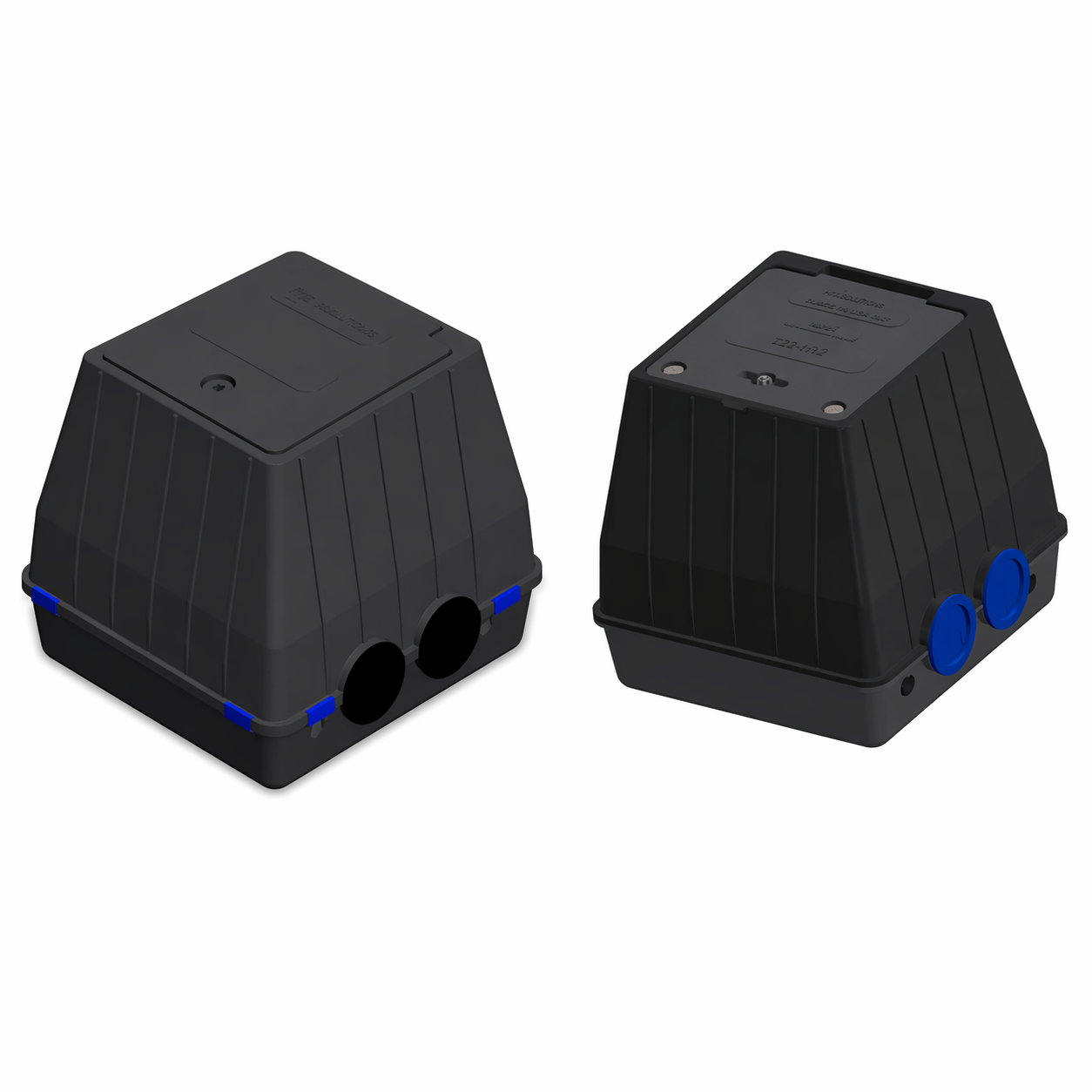

AXS-320T-LD & AXS-320T-S-LD Vaults
- Ideal for low density traffic installations. Depending on splitter configuration, up to 12 clients can be connected.
- The unit can be split between base or pan and chamber section to allow installation over existing networks.
- Low surface footprint unit 8.4” x 8.4” [213mm x 214mm]
- No tools required for assembly – press-on clips complete the assembly.
- Duct ports are sealed with rubber grommets allowing interface with multiDuct and/or microDuct. No foaming agent or additional sealants are required.
- Knock-down design allows high packing density for transport savings.
TIER Light Duty
AXS- 400- FP

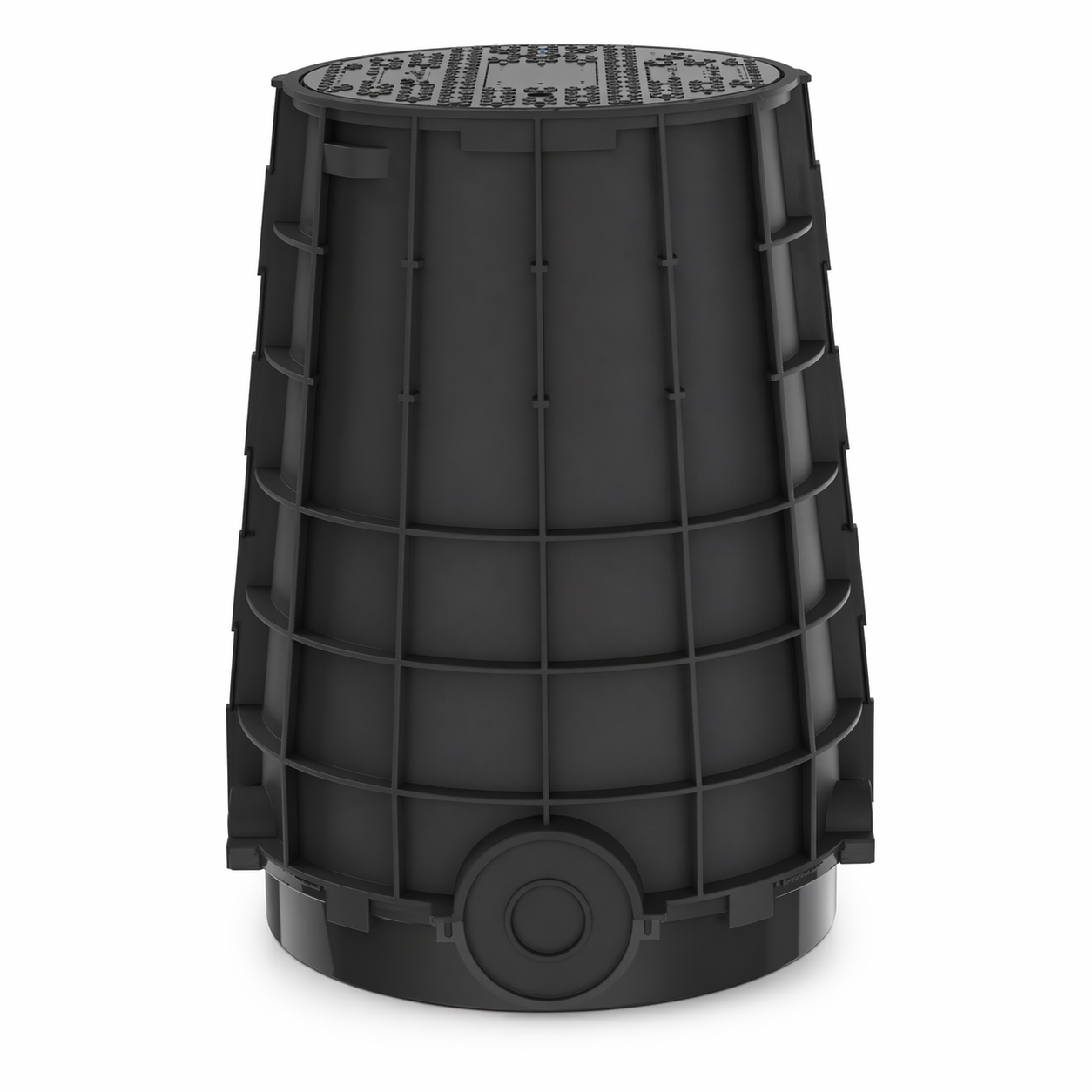

AXS-400-FP Vault
- Ideal for medium fiber count installations.
- Tapered design allows vaults to nest/stack on top of each other, reducing transportation costs and storage space.
- Small surface footprint diameter of ~ 14.5” [370mm].
- Hingeless slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER 8
311BCBT

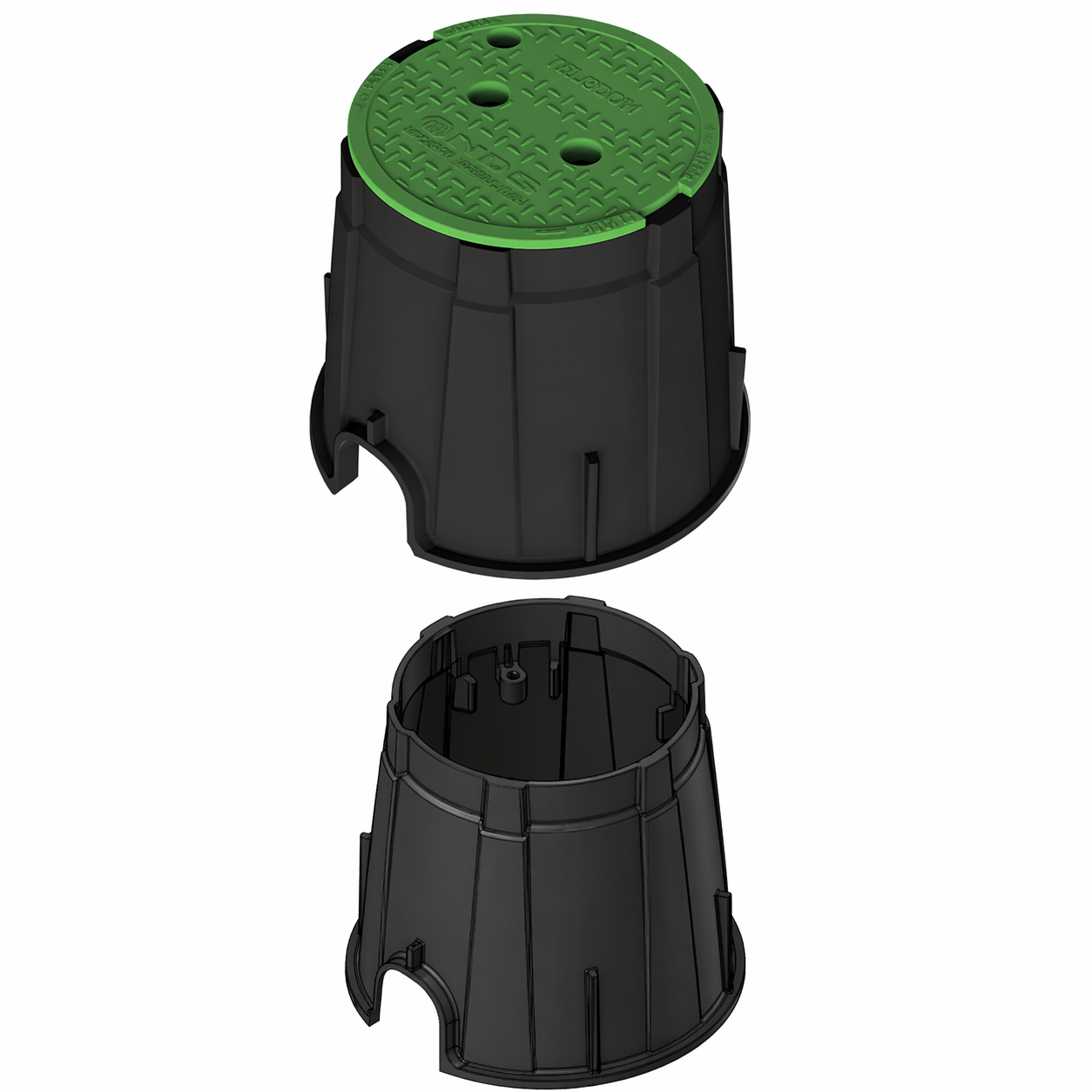

Pro-Spec® Series – 10 in. Round TELECOM Box (311BCBT) Box with Marker Disc (311BCBT-M)
- “TELECOM” marking on cover
- Commercial grade box and cover engineered for heavy-duty use
- Structural support ribs reinforce box for added strength
- Includes bolt to secure cover
- Universal Locking Mechanism (ULM) – patented design
- Enables various sizes of bolts to secure cover, 3/8 in. diameter and minimum 2-1/2 in. length
- Nut is no longer needed but speed nut slot also exists (speed nut not included)
- Available with electronic marker disc (frequency 101.4 kHz) installed on 311BCBT-M
TIER Light Duty
326BCBT-BG

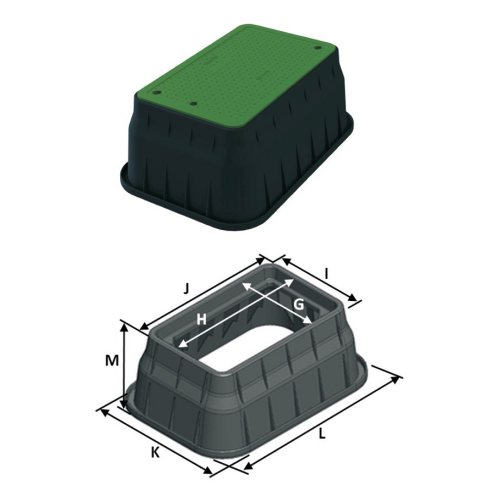

Pro-Spec® Series – 17 in. X 30 in. TELECOM Box (326BCBT-BG) Box with Marker Disc (326BCBT-BG-M)
- “TELECOM” marking on cover
- Commercial grade box and cover engineered for heavy-duty use
- Structural support ribs reinforce box for added strength
- Includes 3/8 in.-16 brass nuts and bolts to secure cover
- Available with electronic marker disc (frequency 101.4 kHz) installed on 326BCBT-BG-M
TIER Light Duty
HLD-243624

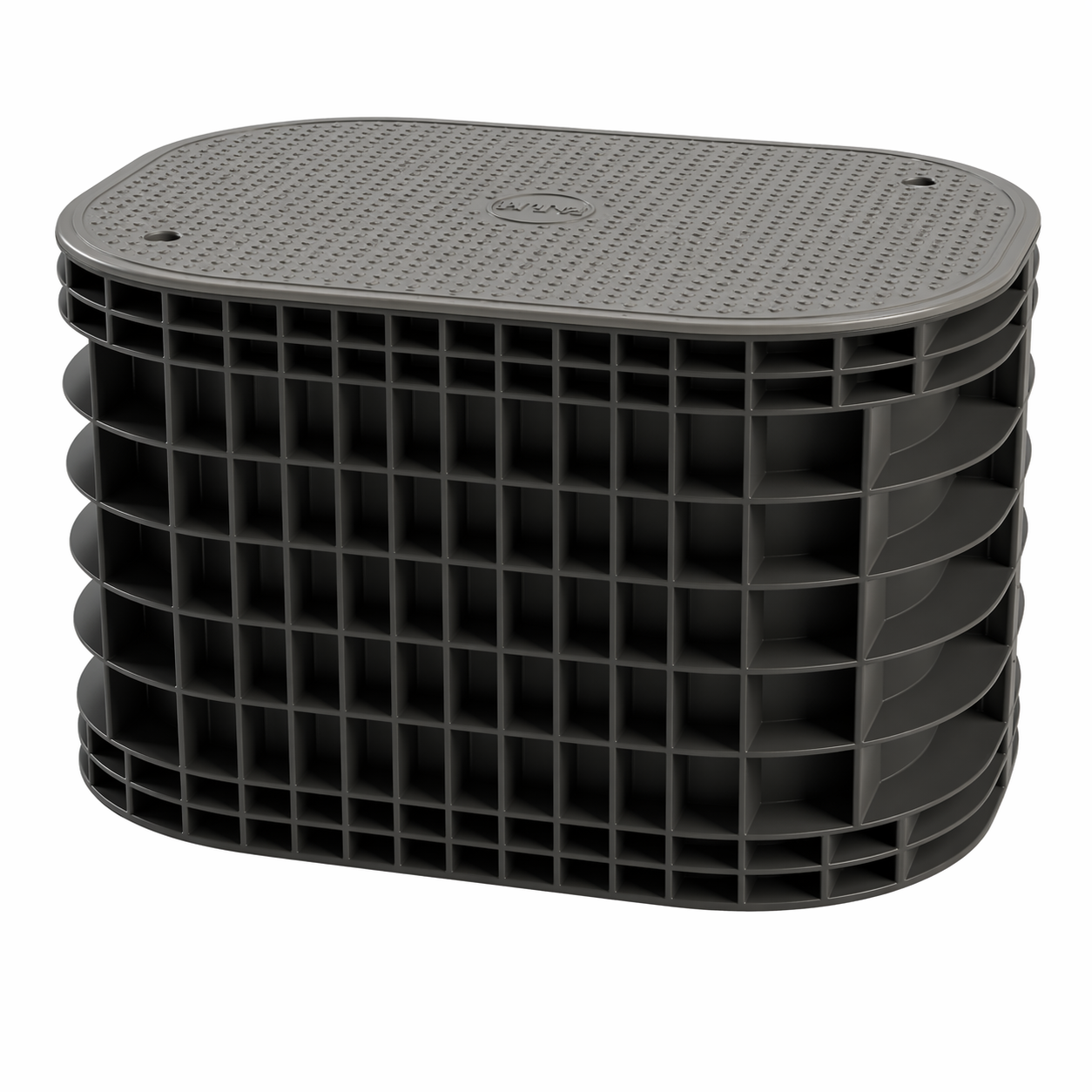

HLD -243624
- HDPE Contruction (Lid & Clamshell)
- Lightweight (<100 lbs Fully Assembled)
- Reversible Clamshell – Prevents Errors when Setting
- Unique Snaplock Clamshell Design
- Lids available in Gray or Green color
- Unique Clip in Anchors for Lid attachment
- Outer Grid Prevents Heaving after Installation
- Raised lip on clamshell and recess in lid prevent water ingress to unit
TIER Light Duty
313BCBT

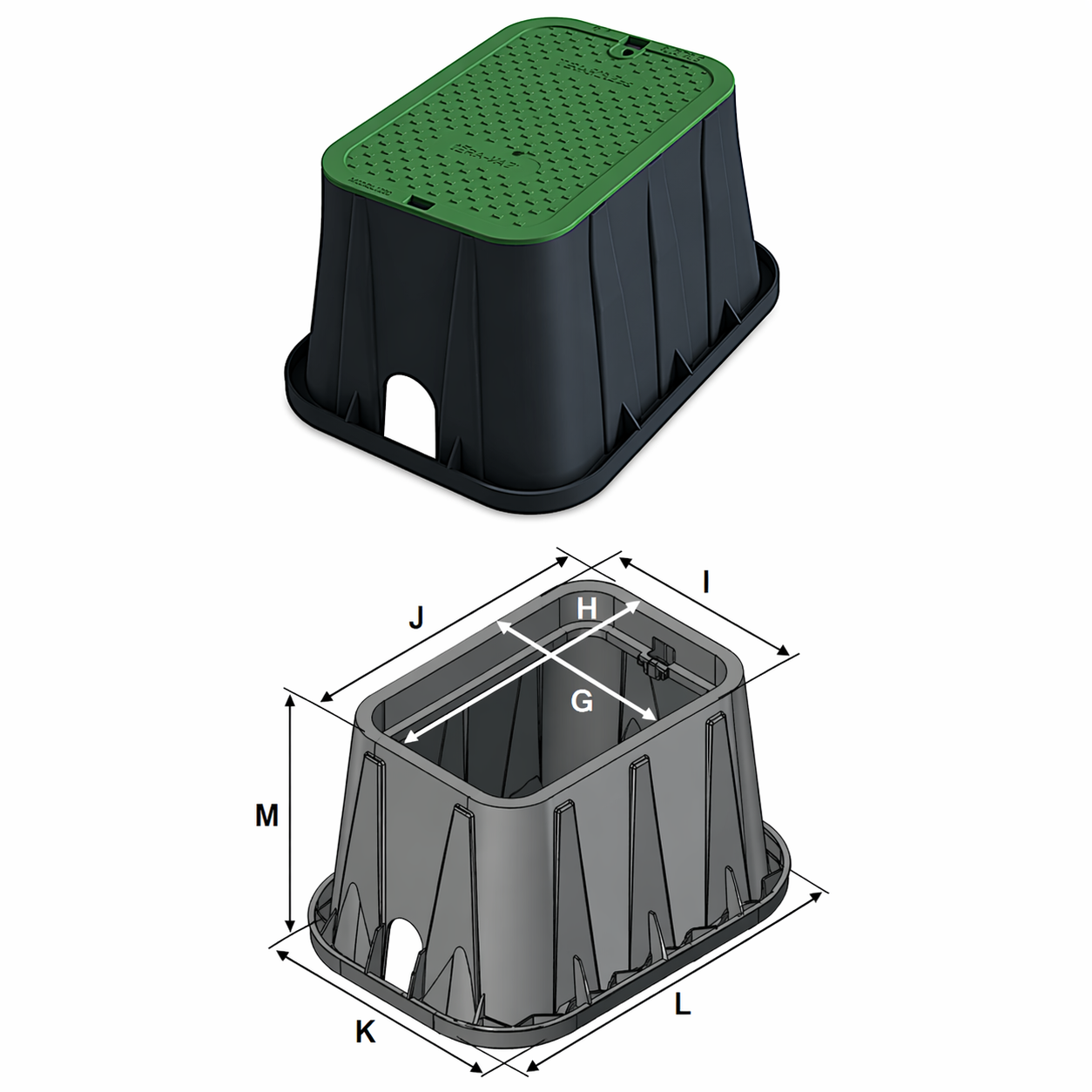

Pro-Spec® Series – 14 in. X 19 in. TELECOM Box (313BCBT) Box with Marker Disc (313BCBT-M)
- “TELECOM” marking on cover
- Commercial-grade box and cover engineered for heavy-duty use
- Structural support ribs reinforce box for added strength
- Includes bolt to secure cover
- Universal Locking Mechanism (ULM)
- Patented design
- Supports various bolt/screw sizes
- Diameter: 3/8 to 1/2 inch
- Minimum length: 2-1/2 inches
- Nut not required (speed nut slot available, speed nut not included)
TIER Light Duty
AXS-400-FP & AXS-400-S-Tier 8-FP

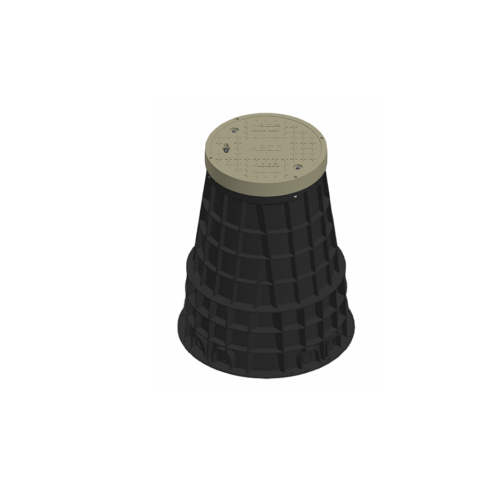

AXS-400-S- Tier-8-FP Vault
- Manufactured in Single Shot Construction.
- Ideal for low to medium fiber count installations.
- Manufacture from lightweight, high strength composite materials.
- Small Surface footprint diameter of 14” [366 mm].
- Tapered chamber design allowing for higher cable slack management.
- A Hingeless slide-in lid, with bolt down locking technology.
- Branding: Fiber Optic, custom branding available upon request.
TIER Light Duty / 8
