313BCBT

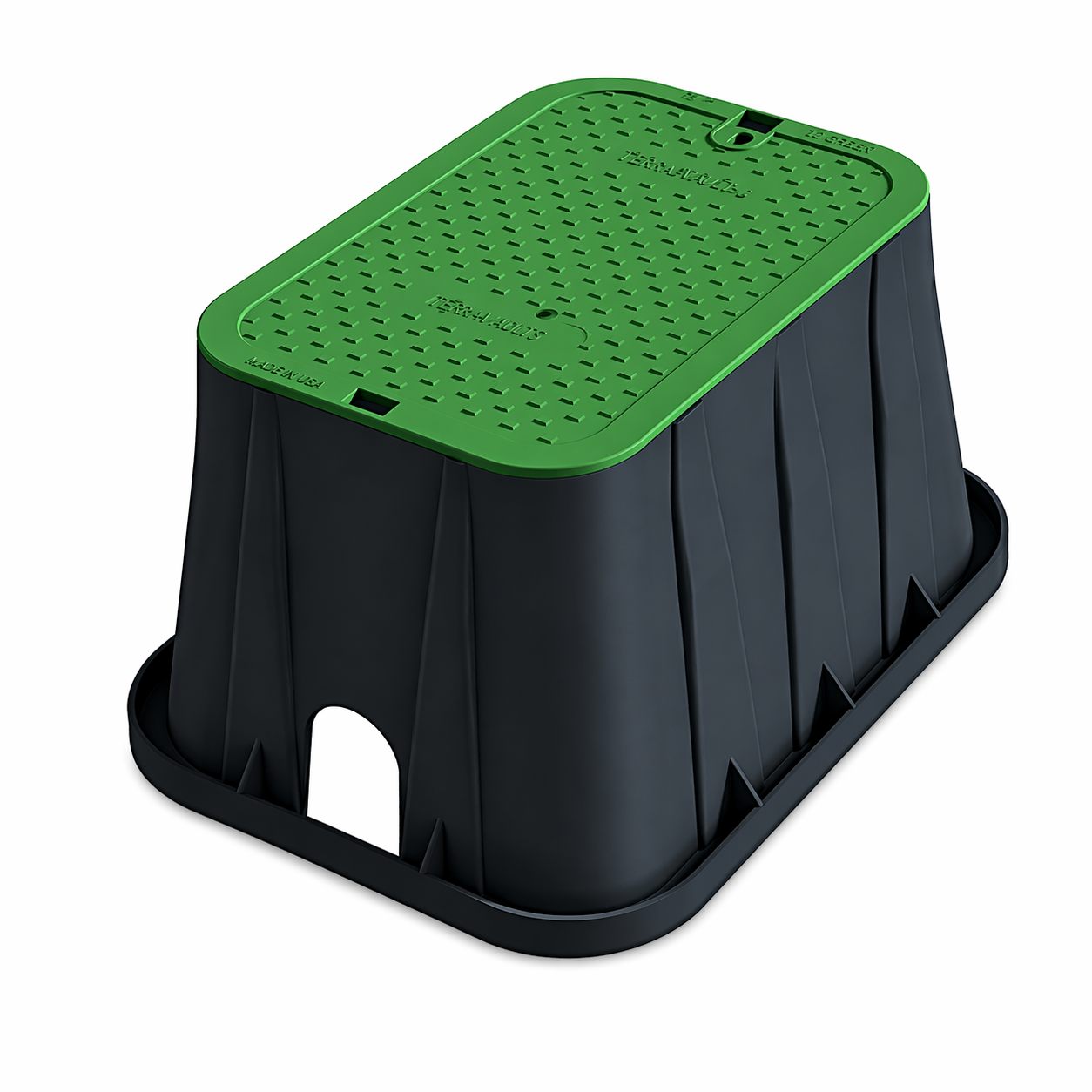

Pro-Spec® Series – 14 in. X 19 in. TELECOM Box (313BCBT) Box with Marker Disc (313BCBT-M)
A plastic pedestrian-rated handhole is a lightweight underground access enclosure made from durable HDPE or engineered polymer materials, designed specifically for foot traffic areas. It is commonly used in telecom, electrical, and fiber optic infrastructure where no vehicular loading is expected. Ideal for sidewalks, green spaces, and landscaped areas where corrosion resistance, easy handling, and cost-effectiveness are key.
TIER
Light Duty
Cover
- Top width : 11-1/2 in.
- Top length : 16-5/8 in.
- Bottom width : 10-1/8 in.
- Bottom length : 15-1/4 in.
- Rim thickness : 1/4 in.
- Overall height : 2 in.
Features
- “TELECOM” marking on cover
- Commercial-grade box and cover engineered for heavy-duty use
- Structural support ribs reinforce box for added strength
- Includes bolt to secure cover
- Universal Locking Mechanism (ULM)
- Patented design
- Supports various bolt/screw sizes
- Diameter: 3/8 to 1/2 inch
- Minimum length: 2-1/2 inches
- Nut not required (speed nut slot available, speed nut not included)

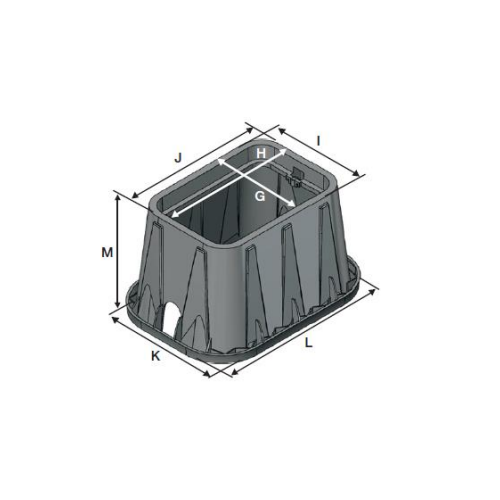

Dimensions
- 14”x19”
