PRODUCT APPLICATIONS, INFORMATION, & SPECIFICATIONS
0
PRODUCT APPLICATIONS
0
Polycrete Handholes
Polymer Concrete Castings

Polymer concrete (PC), a thermosetting material, is used when long term wearability is needed. Utilized in our "PC" and "FC" product series, polymer concrete combines polyester cross linked resin and aggregate fillers to provide years of wear-and-tear service to high pedestrian and vehicular traffic areas. When combined with secondary reinforcing materials, such as fiberglass and utilized in engineered geometric shapes, polymer concrete has significant load carrying abilities. This material can take constant exposure to weather and sun and still remain a secure and aesthetically pleasing enclosure. Offering five times the strength of concrete, polymer concrete is the right choice for high-load environments.

0
Fiberglass Handholes
FRP Spray-up

As the size of the enclosure increases, so does its overall weight and installation cost. A solution is a lightweight but high-strength material such as FRP (fiber reinforced polymer) a thermosetting polyester material. FRP products are produced using the "spray-up" process which allows us to achieve very high percentages of fiberglass resulting in a significant improvement in product reliability and durability, while providing for easy handling at the job site.

0

Product Applications

No matter what your enclosure or foundation need, we have a product to suit your installation environment and budget. The following application areas are defined for your use to better identify the right product for your particular field situation.

0

Greenbelt Applications

Golf courses, parks, greenbelts and other areas protected from all vehicle ingress by such means as distance, foliage, fencing or structures. Products suited for this area include all HDPE and ABS molded products, as well as low-end designs of FRP/PC products having 300 Ibs./sq.ft. load capacity.

0

Sidewalk/Driveway/Parking Lot Applications

Areas that are seperated from intentional vehicular access through the use of curbing or berms but in an area that could be susceptible to incidental traffic. Products suited for this environment are PC, CM and PC/FRP designs 10,000 Ibs./sq.-ft. load rating (H5 or A8 ratings). Areas where vehicular traffic is likely but where travel speeds are reduced and vehicle volume is light. These areas could include driveways or parking lots where overweight loads are restricted. Products suited for this application include PC and PC/FRP designs with load ratings of 22,800 Ibs./sq.ft. Products of PC and PC/FRP construction with steel covers are also suited for high truck traffic parking (H10 or A16 ratings).

0

Roadway Applications

Areas withing the intended traveled way where high volume or higher speeds are obtained by vehicular traffic. Products for this application are served with PC/FRP construction reinforced throughout and topped with cast iron rings and covers to survive this high-impact environment (H20 ratings only).

0
PRODUCT INFORMATION
0

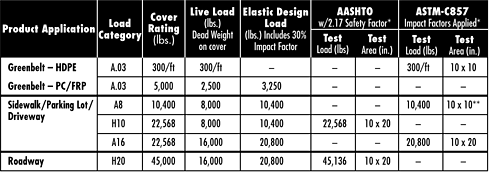

technical information
0

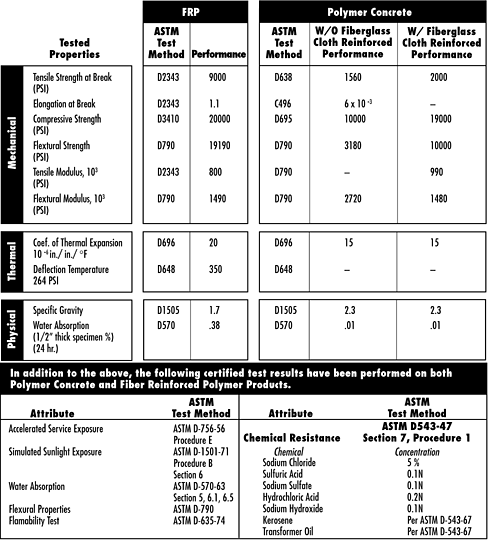

material specifications
0
PRODUCT SPECIFICATIONS
0
Get Adobe ReaderDOWNLOAD ADOBE READER TO VIEW SPECIFICATIONS
0

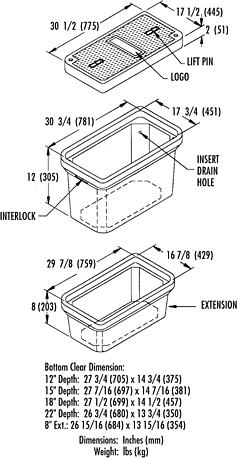

fc1324 Splice/Valve Box
FC1324

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

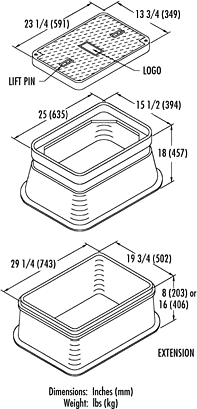

fc1324wuc Splice/Valve Box
FC1324WUC

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

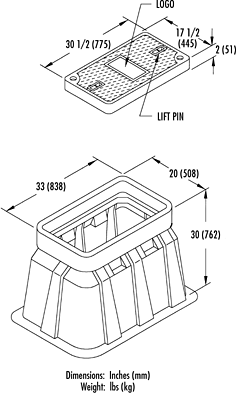

fc1730 Splice/Valve Box
FC1730

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

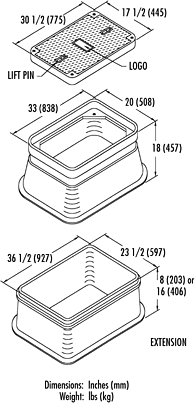

fc1730wuc Splice/Valve Box
FC1730WUC

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

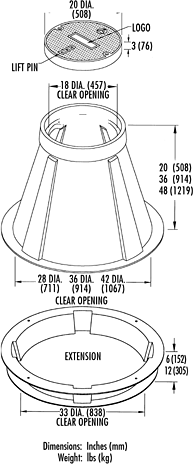

fc1800 Splice Vault
FC1800

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

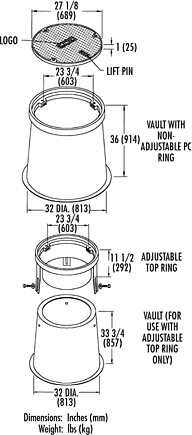

fc2432 Splice Vault
FC2432

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

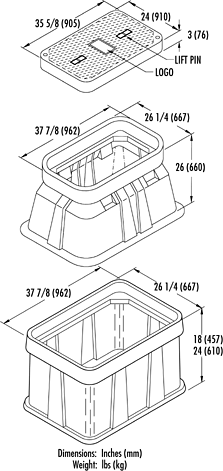

fc2436 Splice/Valve Box
FC2436

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

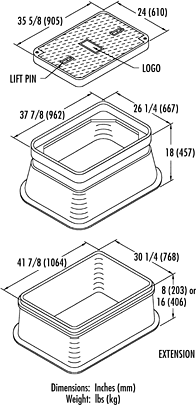

fc2436wuc Splice/Valve Box
FC2436WUC

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

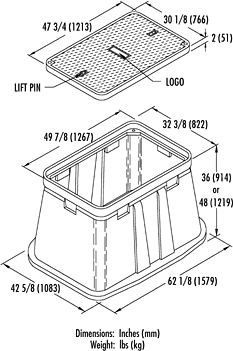

fc3048 Splice/Valve Vault
FC3048

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

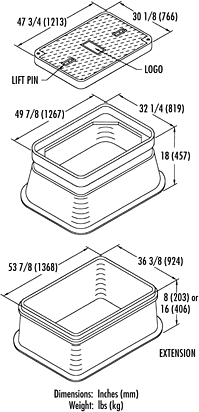

fc3048wuc Splice/Valve Vault
FC3048WUC

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

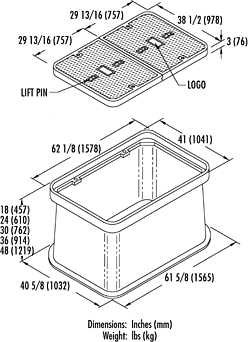

fc3660 Splice/Valve Vault
FC3660

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

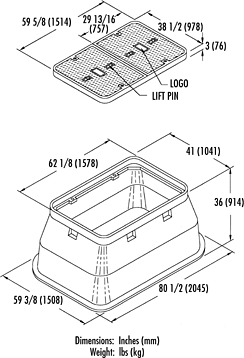

fc3672 Splice/Valve Vault
FC3672

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

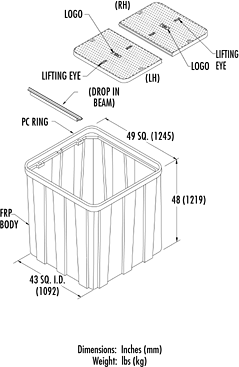

fc4848 Splice/Valve Vault
FC4848

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

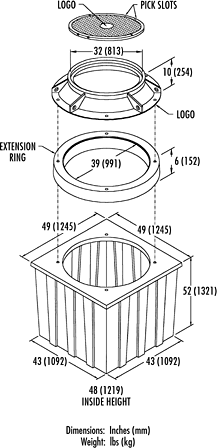

fc4848r Splice/Valve Vault
FC4848R

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

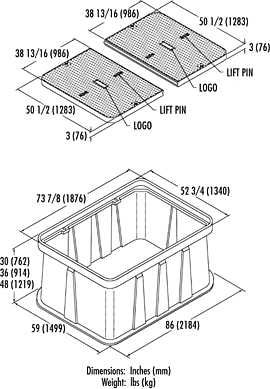

fc4882 Splice/Valve Vault
FC4882

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

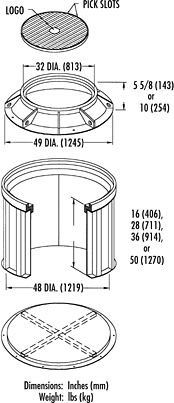

fc5400r Splice Vault
FC5400R

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

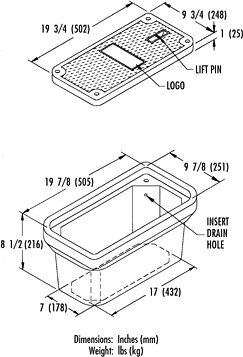

pc0818dp Splice/Valve Box
PC0818DP

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

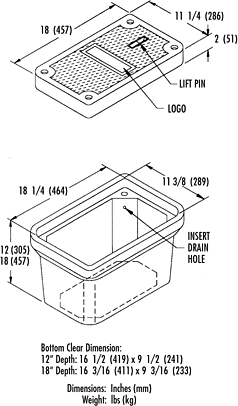

pc1118dp Splice/Valve Box
PC1118DP

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

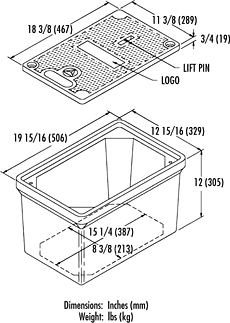

pc1118e Splice/Valve Box
PC1118E

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

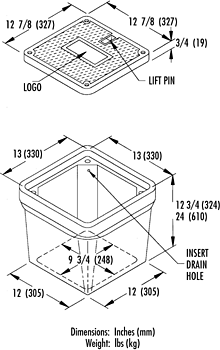

pc1212dp Splice/Valve Box
PC1212DP

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

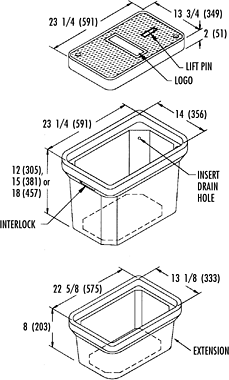

pc1324dp Splice/Valve Box
PC1324DP

arrowClick to enlarge image
Adobe Reader LogoView specifications
0

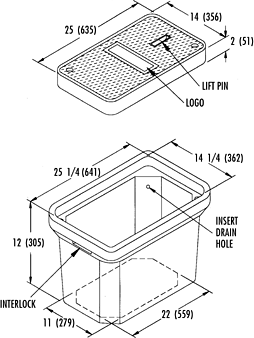

pc1425dp Splice/Valve Box
PC1425DP

arrowClick to enlarge image
Adobe Reader LogoView specifications
